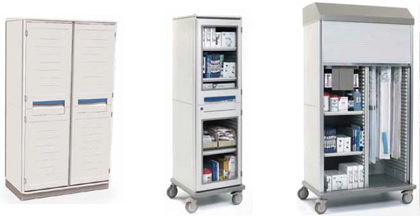

Metro Starsys - Tall Units

Tall Stationary Units are stand-alone products or may be used in conjunction with other tall units or Starsys product families. Tall stationary units are available in single and double widths only.

General Overview:

• The overall height of a tall stationary unit is 721/2" (1842mm). Add 113/4" (299mm) with sloped tops. Overall widths are 211/2" (546mm) for singles and 411/3" (1049mm) for doubles.
• The configurable interior space is 66" (1676mm).
• Filler kits are available to fill gaps between units, between the back of a unit and the wall (25" [635mm] & 30" [762mm] depths) and between tall units interfacing at 45 or 90 degrees.
• All tall units must be affixed to the wall with appropriate mounting hardware utilizing the attached Starsys mounting bracket or affixed to the floor with the optional floor mounting kit.
• Tall units are not intended to support cantilevered countertop sections.

Mobile Units are stand-alone products are available in single (223/4" [578mm]), double (421/2" [1080mm]) and triple (621/2" [1558mm]) widths. The overall height of a tall mobile unit is 781/3" (1990mm). Add 113/4" (299mm) with sloped tops. All units are 247/8" (632mm) deep.

General Overview:

• The configurable interior space is 66" (1676mm) on a tall unit. Short units interior space from 24" (610mm) to 48" (1219mm) in 3" (76mm) increments.
• Triple-width units must be divided into a single & double bay or three single bays — there are no triple wide accessories.
• The specification of a qwikSLOT interior or an empty interior will necessitate an extended mobile base as part of the configuration.
• Starsys Mobile Units have a total recommended load rating of 900 lbs. (408kg) including the weight of the Starsys unit.
• Units feature two 5" (127mm) casters — the front two casters have color-matched toe-brakes.
• Microban® antimicrobial protection inhibits the growth of stain and odor-causing bacteria on Starsys, keeping the surface areas “cleaner between cleanings.”
